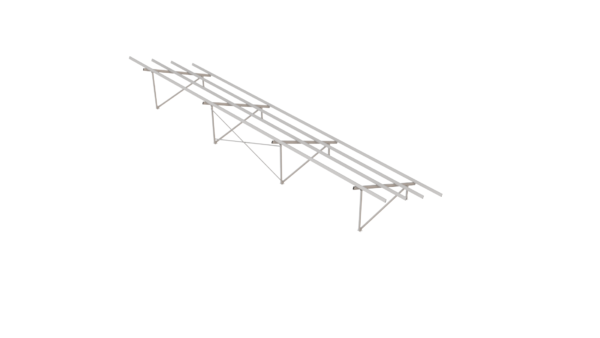

Lumax Ground mount kit (2v10 – 2v12)

R31 756.10 Incl. VAT
(R27 614.00 excl. VAT)

Brand: Lumax Energy

SKU: LMK-GM-2v10/12

Categories:

Ground Mount

, Mounting Structures

Share

Lumax Ground mount kit (2v10 – 2v12) – To install 20 – 24 x PV Modules 1134mm wide

Embrace the power of solar energy with our Concrete Mount Solar System. Designed for ease of installation and reliability, this versatile structure offers a convenient solution for deploying solar panels in various outdoor environments, ensuring efficient energy generation year-round.

Consist off:

	PRODUCT CODE	DESCRIPTION	qty
1	LM-AEC30-45-RNW	ADJUSTABLE END CLAMP FOR 30-45mm FRAMED PANELS	8
2	LM-IC35-GP1-RNW	One pins Inter Clamp For 31mm to 41mmFramed Modules	44
3	LM-R112-5250	Purlin 112x5250mm AL6063 T6 Mill	4
4	LM-R112-4400	Purlin 112x4400mm AL6063 T6 Mill	8
5	LM-RS-I-R112-300	Purlin splice R112 internal – 300mm AL6005 T5	8
6	LM-PRC	PURLIN TO RAFTER CONNECTOR	32
7	LM-R110-3800	Rafter 110x3800mm AL6005 T6 Mill	4
8	LM-TTC-90	R80 to SB Connector (single) 90m	4
9	LM-TTC-120	R80 to SB Connector (double) 120mm	4
10	LM-FP-120	Foot piece for double support bar 120mm	4
11	LM-FP-90	Foot piece for single support bar 90mm	4
12	FS-S-25X6	Self-drilling screw 25mmx5.5mm class 4 coated	85
13	FS-CA-M12X100	Chemical Anchor M12x100	16
14	FS-TR-M12X160	Threaded rod M12 x 160mm SUS304	16
15	FS-N-M12	Nut M12 Standard SUS304	32
16	FS-FW-M12	Flat washer M12 SUS304	32
17	LM-R20-4300	Rail (top fix) 20x4300mm AL6063 T6 Mill	2
18	FS-CAP-M8X60	Cap Screw – M8X60mm SUS304	1
19	FS-N-M8	Nut M8 Standard SUS304	1
20	FS-FW-M8	Flat washer M8x16x1.5 SUS304	2
21	FS-SW-M8	Spring Washer M8 SUS304	1
21	LM-SB-550	Support Bar 55x55x550mm AL6063 T6 Mill	4
21	LM-SB-1740	Support Bar 55x55x1740mm AL6063 T6 Mill	4
21	LM-SB-2525	Support Bar 55x55x2525mm AL6063 T6 Mill	4
