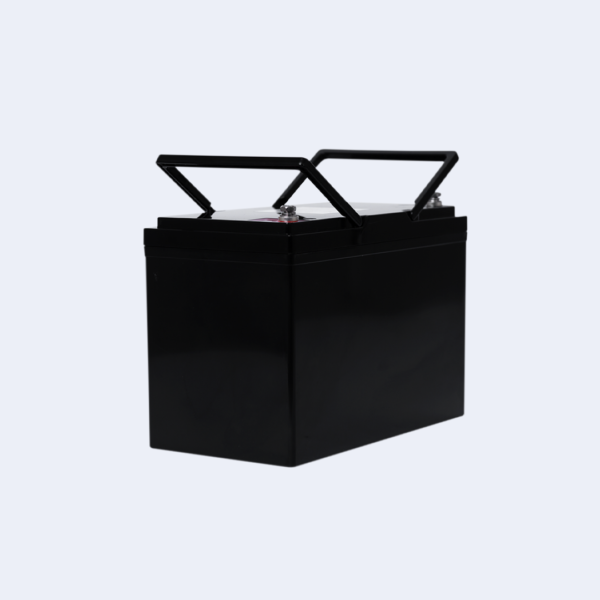

Hubble S-100A 12v 100ah 1.28kwh Lithium Battery

Hubble S-100A 1.2kWh 12V 100Ah Lithium Ion

• ​Low self-discharge

• High cycle and service life

• 1C High performance lithium battery

• Internal Battery Management System

• Excellent high temperature performance

• High energy density and conversion efficiency

• Can be configured in 12V, 24V, 36V or 48V in series

• BMS protects internal cells and ensures smooth operation

• Built in protection for over-charge, over-discharge & over-temperature

• Compatible with most UPS & Inverters using AGM/VRLA charge setting

• Suitable for lead acid replacement when paired with lithium compatible inverters

• Can parallel up to 16 batteries in 48V configuration. 4 in series and 4 in parallel

• ​Rated Capacity (5HR): 100Ah

• Nominal Voltage: 12.8 V

• Discharge Ending Voltage: 12V

• Charging Limited Voltage: 14V

• Max. Charging Current: 100A

• Max. Continuous Discharging Current: 100A

• Cell C Rating: 1.0C

• Weight: Approx. 10.5kg

• Configuration: 4 in series with 4 banks in parallel for maximum 16 batteries

• Parallel: Parallel connection is up to 4 strings

• Dimensions (W x D x H): 305mm x 170mm x 220 mm

• Maximum DC Limits: Maximum 100 Amp Charge per bank & 100 Amp discharge per bank

• Cells: 1st LiFe Prismatic LiFePO4

• Design Life: +/- 15 years

• Cycle Life @ 1C: +/- 4000 Cycles
